In the realm of global shipping, bulk carriers, container vessels, general cargo ships, and multi-purpose vessels encounter ongoing difficulties in maintaining their cargo holds. Residual cargo remnants, rust, oily grime, chemical pollutants, and persistent scale within cargo holds necessitate regular deep cleaning to comply with international port inspection standards, avert cargo cross-contamination, prolong hull service life, and fulfill charter party obligations. Conventional manual scrubbing, short-range spraying equipment, and segmented cleaning methods suffer from low efficiency, high labor demands, inconsistent cleaning coverage, safety hazards for personnel working at heights, and excessive time and labor expenses.
To address these enduring challenges in marine cargo hold cleaning operations, SEMPO has officially introduced a new matching solution: a 20-meter high-strength telescopic pole that is perfectly paired with the SEMPO heavy-duty Cargo Hold Application Set. This enhanced combination improves upon the previous 8m/12m/18m pole configurations, providing a longer working reach, broader coverage area, greater cleaning uniformity, and significantly enhanced operational efficiency. It has emerged as the ideal professional chemical spraying and deep cleaning system for ship owners, ship management firms, marine cleaning contractors, and port service teams globally. This article provides a detailed discussion on the product composition, key advantages, application scenarios, operational value, and market competitiveness of this innovative matching combination.

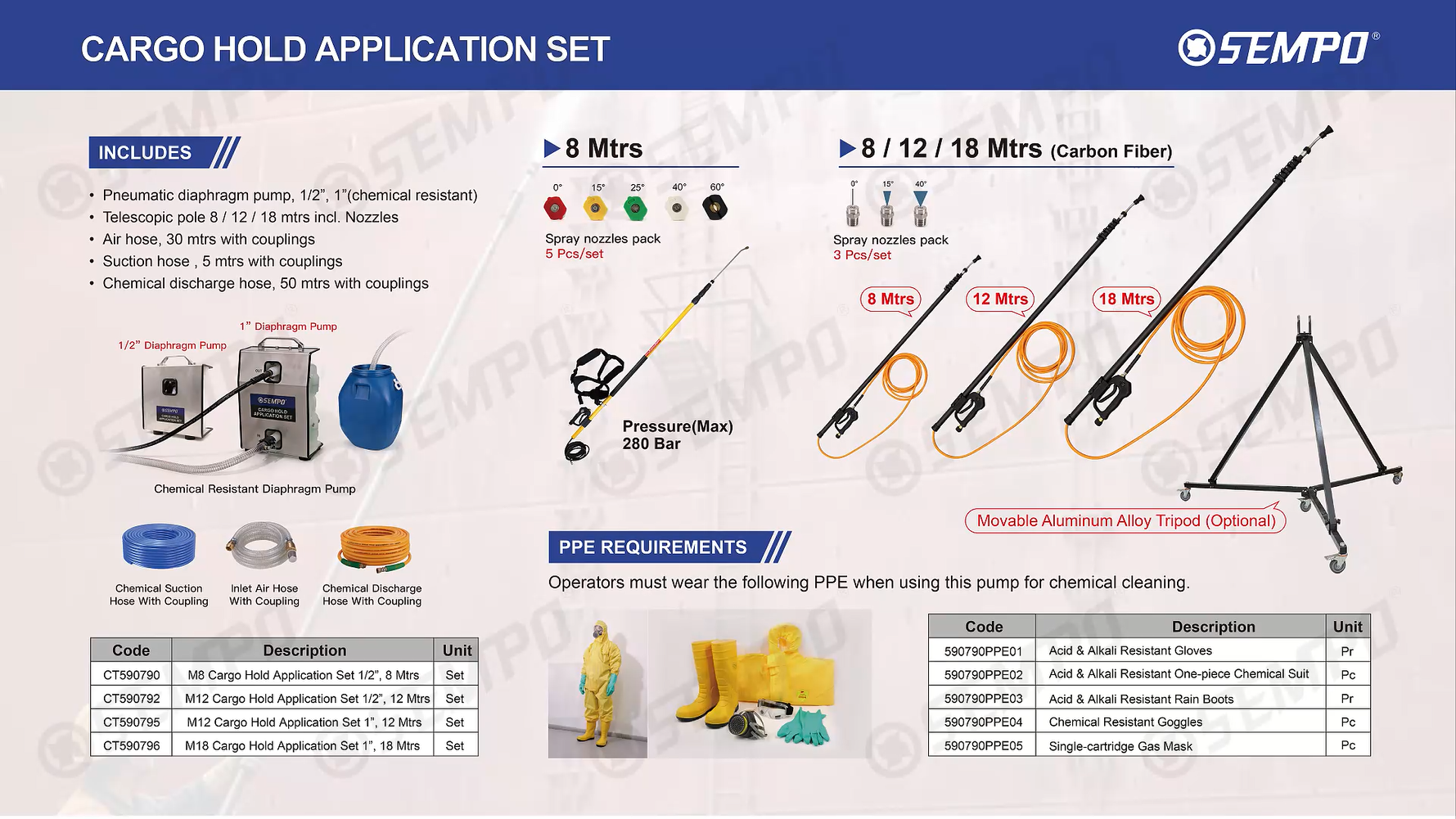

1. Complete Configuration of the New Matching Combination
1.1 SEMPO Heavy-Duty Cargo Hold Application Set (Core Power Unit)
The cargo hold application set functions as the pressure feeding and chemical delivery core of the entire system, equipped with fully standardized accessories to facilitate long-distance chemical transmission and ensure stable spraying operations.
Chemical-resistant Pneumatic Diaphragm Pump: Available in two specifications (1/2 inch and 1 inch). Made with corrosion-resistant internal components, this pump is suitable for handling acidic, alkaline, solvent-based cleaning agents, rust removers, degreasers, and hold washing detergents that are frequently utilized in the marine sector. It operates using the ship’s compressed air supply, ensuring stable pressure output without the risk of electric sparks, and is fully compliant with safety regulations for hazardous areas on ships.
Complete Supporting Hose Assembly:
• A 5-meter chemical suction hose equipped with quick couplings, designed to connect the pump to chemical storage drums for reliable liquid intake;
• A 30-meter air inlet hose with connectors, facilitating the connection between the vessel’s compressed air pipeline and the diaphragm pump for operation;
• A 50-meter chemical discharge hose with compatible couplings, responsible for transporting the cleaning medium from the pump outlet to the telescopic spraying pole.
Modular Cabinet Design: The pump is housed within a sturdy stainless steel protective cabinet, featuring dedicated IN and OUT ports for efficient hose assembly. It is waterproof, dustproof, shock-resistant, and designed to withstand the harsh conditions of wet, salty, and corrosive marine environments. The cabinet is portable, equipped with a top handle for convenient relocation between various holds and deck positions.
1.2 Upgraded 20-Meter High-Performance Telescopic Pole (Extended Reach Upgrade)
This newly customized 20-meter telescopic pole surpasses the previous maximum length limit of 18 meters for standard poles, showcasing targeted structural enhancements:
Premium Carbon Fiber Main Body Material: This material is lightweight yet possesses ultra-high tensile strength, significantly reducing the overall weight when held. It is highly elastic and resistant to bending, designed for use with a traction rope and pulley assembly. Additionally, it demonstrates excellent resistance to corrosion from marine salt air and long-term exposure to ultraviolet rays.
Multi-Section Telescopic Locking Structure: Each section features dependable mechanical locking joints that guarantee a secure length fixation when fully extended to 20 meters, preventing any retraction or instability during high-pressure spraying tasks. Operators have the flexibility to adjust intermediate working lengths based on the actual height required and the specific cleaning needs.
Multi-Angle Interchangeable Spray Nozzle Kit: This kit includes nozzles with various angles (0°, 15°, 40°, and additional options). Users can easily switch between concentrated jet flushing and wide fan-shaped spraying modes, allowing for targeted cleaning of stubborn localized stains or uniform chemical application over larger areas.
Optional Movable Aluminum Alloy Tripod Bracket: For extended cleaning operations, the accompanying wheeled tripod is designed to support the weight of the 20-meter pole, significantly reducing operator fatigue, stabilizing the spraying position, and ensuring a consistent spraying distance and coverage within deep, elevated cargo holds.
1.3 Complete Matching PPE Safety Package (Standard Safety Support)
Given that chemical cleaning involves corrosive substances, the system is equipped with a comprehensive set of personal protective equipment as an auxiliary configuration: acid and alkali resistant one-piece chemical suits, chemical resistant gloves, anti-corrosion rain boots, safety goggles, and single-cartridge gas masks, all fully compliant with maritime safety regulations to safeguard operators from chemical splashes and hazardous fumes.
2. Core Competitive Advantages of the 20m Pole + Cargo Hold Application Set Combination
2.1 Significantly Enhanced Working Efficiency & Coverage
The 20-meter extended reach allows access to deeper and higher cargo hold areas that poles measuring 18 meters or less cannot reach. In large bulk carrier holds with elevated vertical side plates, top corner structures, hatch coaming inner surfaces, and upper ceiling regions, operators can perform comprehensive chemical spraying from the deck level without the need for frequent ladder climbing, repeated equipment relocation, or segmented spraying tasks. A single deployment achieves full-side spraying for an entire hold compartment, reducing overall operation time by 25% to 40% compared to traditional shorter pole solutions, thereby significantly decreasing ship turnaround time at the port.
2.2 Improved On-Site Operational Safety
Conventional high-place cleaning necessitates frequent climbing of scaffolding or ship ladders, which introduces risks of falls, chemical splashes, and collisions in confined hold spaces. Utilizing the 20-meter telescopic pole allows all spraying tasks to be conducted safely from the open deck. Operators remain clear of high-risk confined areas and elevated operations, thereby minimizing the incidence of falls, chemical burns, and inhalation of harmful vapors, fully complying with ISM safety management system standards for shipping companies.
2.3 Consistent Chemical Coating & Superior Cleaning Results
The stable pressure output from the pneumatic diaphragm pump guarantees uniform liquid delivery along the entire 20-meter pole length, preventing uneven concentration due to pressure loss over long distances. Adjustable-angle nozzles facilitate precise control over the dosing of cleaning chemicals, rust inhibitors, or hold passivation agents. Even challenging areas such as hard-to-reach corners, underdeck structural beams, bulkhead seams, and residual cargo adhesion zones receive thorough and uniform chemical coverage, enhancing stain decomposition, minimizing chemical waste, and reducing overall cleaning material expenses.
2.4 Exceptional Durability & Minimal Long-Term Maintenance Expenses
The pump unit designed for cargo hold applications and the 20-meter carbon fiber pole are engineered for rigorous marine continuous operation. The internal components of the corrosion-resistant pump are suitable for prolonged exposure to harsh cleaning chemicals; the carbon fiber poles offer superior resistance to rust, dents, and deformation when compared to metal telescopic rods. The quick-coupling hose design facilitates rapid assembly and disassembly, allowing for easy storage and transportation between vessels or shipyards. The modular design of spare parts streamlines daily maintenance, reducing equipment downtime and long-term operational costs for ship management teams and cleaning contractors.
2.5 Extensive Compatibility & Versatile Application Options
The cargo hold application set is offered in M8, M12, and M18 specification models, ensuring perfect compatibility with the new 20-meter telescopic pole through a standardized interface transformation, eliminating the need for significant modifications to existing equipment for clients who already possess SEMPO original cleaning sets. Clients have the option to acquire the complete matched package or simply upgrade their current system with the 20-meter pole separately, with highly adaptable procurement plans tailored to accommodate various budgetary and fleet scale requirements.
3. Broad Industry Application Scenarios
3.1 Routine Cleaning of Cargo Holds
Ideal for post-discharge cleaning of bulk cargo residues such as grain, coal, ore, cement, fertilizer, and steel scrap, this system effectively removes dust, adhered particles, and residual dirt by pre-spraying detergent with the 20-meter extended system, thus preparing holds for subsequent cargo loading and preventing cross-contamination between different commodities.
3.2 Rust Removal & Anti-Corrosion Passivation Treatment
Ship operators frequently perform routine rust removal, scale eradication, and pretreatment for anti-corrosion coatings. This process involves the application of a combination of rust remover, phosphating solution, and passivation agent, which is evenly distributed on the high bulkhead and ceiling surfaces using a 20-meter pole. This preparation establishes a robust foundation for subsequent sandblasting, painting, and anti-corrosion maintenance activities, thereby prolonging the service life of hull steel.
3.3 Tank & Hold Chemical Degreasing & Sanitization
For bulk carriers converted into tankers, edible grain carriers, and container ship holds that are tainted with oily sludge, the system utilizes sprays of alkaline degreasing agents and sanitizing chemicals to remove oil films, mold, and microbial residues. This process ensures compliance with stringent food-grade hold inspections and port sanitary quarantine standards.
3.4 Special Contamination Remediation
In instances of cargo leakage, hazardous substance residues, chemical spill contamination, or the aftermath of hold fires, this long-distance spraying system effectively administers neutralizing chemicals from the deck level to address contaminated areas within enclosed holds. This method minimizes direct exposure of operators to hazardous pollutants.
4. Economic & Operational Value for Shipping Stakeholders
For ship owners and ship management firms, the effective cleaning of cargo holds significantly reduces vessel laytime in ports, minimizes costly port detention fees, and enhances fleet turnover efficiency. For professional marine cleaning service providers, the 20-meter pole matched system increases throughput for individual jobs, allows for the management of larger vessel projects with fewer personnel, boosts competitiveness in bidding, and improves profit margins. In comparison to acquiring two sets of short-pole cleaning equipment to address high hold areas, transitioning to a single set of 20-meter matched equipment decreases overall investment costs, alleviates the burden of managing multiple devices, and reduces inventory requirements. Additionally, the reduction in safety accident risks lowers potential compensation and insurance premium liabilities for businesses, thereby creating a comprehensive long-term value encompassing economic, safety, and operational aspects.
Conclusion
In light of the increasingly stringent global port inspection standards, the demanding turnaround schedules for ships, and the escalating costs associated with labor and safety management, the modernization of traditional cargo hold cleaning equipment is becoming an essential trend for participants in the shipping industry. SEMPO’s newly introduced matching solution—the 20-meter upgraded telescopic pole combined with the classic Cargo Hold Application Set—effectively addresses the primary challenges of limited spraying range, inefficiency, and heightened safety risks associated with conventional hold cleaning practices. With its dependable industrial-grade quality, adaptable configuration options, significant improvements in efficiency, and comprehensive safety enhancements, this innovative combination offers a cost-effective, high-performance solution for long-distance chemical spraying in modern marine cargo hold maintenance. Whether utilized for fleet self-maintenance or by professional third-party cleaning service providers, this new matching system represents a valuable upgrade to streamline workflows, reduce overall costs, and enhance operational competitiveness within the global maritime sector.
