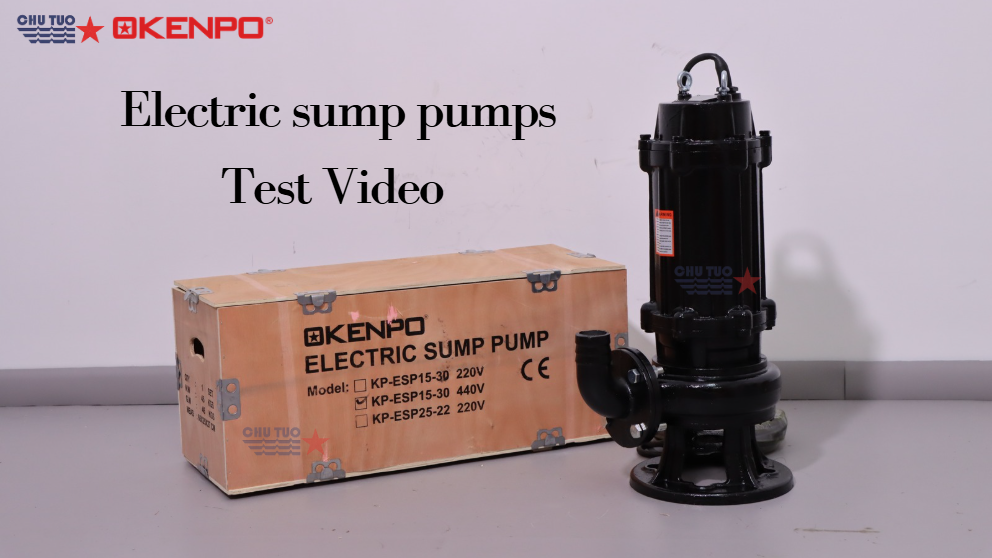

Electric Submersible Sewage Sump Pump

Electric Submersible Sewage Sump Pump

Pump body material: Cast iron

Power supply: 1PH / 3PH

Maximum depth: 5 m

Fluid temperature: ≤40 °C

Suitable media: Sewage, wastewater, rainwater, and water containing solid particles or fibers

Certification: CE

This series of submersible sewage pumps features an integrated pump-and-motor design, allowing the entire unit to operate while fully submerged. They are designed for the discharge of municipal sewage, domestic wastewater, rainwater, and industrial effluent containing solid particles and long-fiber impurities.

Primary Applications

- Drainage for municipal projects and civil air-defense facilities

- Sewage discharge for hotels, hospitals, and commercial buildings

- Industrial wastewater treatment in factories

- Emergency drainage and flood control for mines and construction sites

Operating Conditions (General Specifications)

- Maximum submersion depth: 5 meters

- Medium and ambient temperature: Up to 40°C

- Solid particle handling: Maximum particle size must not exceed 50% of the pump outlet diameter

- Supports both single-phase and three-phase power supply

- Dry running is strictly prohibited: Limit land-based testing to a maximum of 10 seconds; the motor must be fully submerged during operation.
