Heaving Line Thrower

Heaving Line Thrower

Heaving Line Thrower Featured Image
  • Heaving Line Thrower

Short Description:

Heaving Line Thrower

Heaving Line Throwing Gun

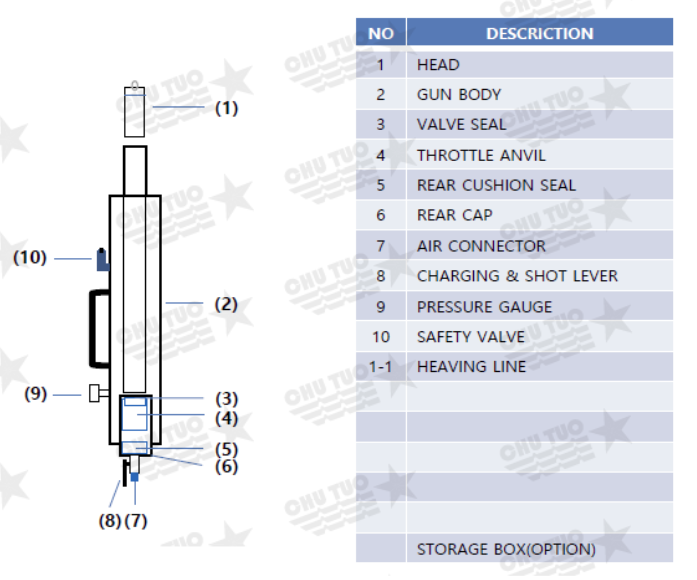

DETAILS

Main body—1

Rubber head with loading guide—2

Rope(4mm*100m)—1

Storage box(option)—1

Option/Fork end(sus304)—1


Product Detail

Heaving Line Thrower

Heaving Line Throwing Gun

CHARACTERISTICS

1. Light weight easy handling and installation.

2. Start-up operation from loading to discharging has come to simple.

3. It is very simple to take on and off the coupler even at the pressure of 0.7~0.8MPa. In addition, air intake is very easy to control at the level of appointed pressure with the valve.

4. Rubber ball can be applied for oil tanker without any problem from its explosion proof.

5. The body is made of stainless(SUS304, some part of the accessories is MC/BC), which gives easy maintenance.

Heaving Line Thrower

Horizontal Range(20~45degree)

Mpa/Bar 0.4 0.5 0.6 0.7 0.8
M 45 50 55 65 75

Compressed air type

MODEL Overall length
(mm)		 Diameter of body
(mm)		 Diameter of barrel
(mm)		 Length of barrel
(mm)		 Max working pressure
(Mpa)		 Storage dimension
(W*L*H)		 Weight
(kg)
HLTG-100 830 160 115 550 0.9 900*350*250 8

Note

1. Do not pump up the compressed air over than 0.9MPa.(the safety valve open at 1.08MPa)

2. After air charging. Be care of barrel top direction, in particular, and never extend your hands over barrel muzzle of peep in its inside.

3. Do not launch the unit as it is kept level. Take on elevation angle as shown in item 5 by all means so that the rubber ball flies descrying a parabola.

Sode Description Unit
CT331345 Heaving Line Throwing Gun SET
