China Inner Rubber Fire Hose 9BAR 13BAR 15BAR factory and manufacturers

Inner Rubber Fire Hose 9BAR 13BAR 15BAR

Short Description:

Inner Rubber Fire Hose

Color: White

Outer layer: Polyester filament

Material of liner: EPDM/SR/PVC

Working pressure: 15BAR/13BAR/9BR

Inside diameter：40/50/65MM

Length: 15/20/30MTRS

Application : Firefighting, Industry, Marine

Send email to us

Product Detail

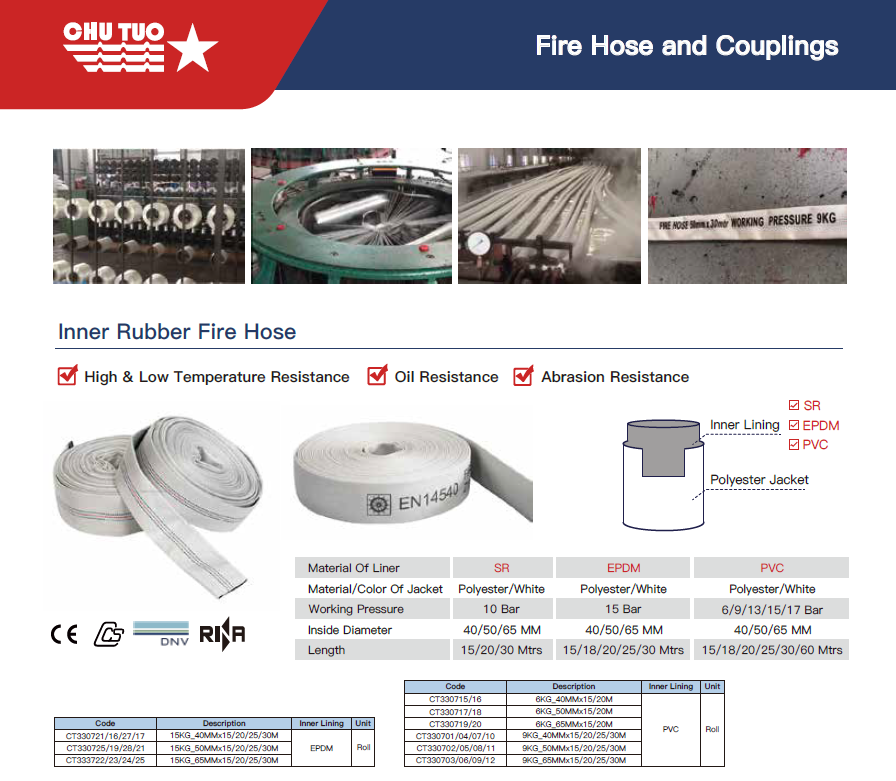

Inner Rubber Fire Hose

• High & Low Temperature Resistance

• Oil Resistance

• Abrasion Resistance

Inner Rubber Fire Hose is used to transport high-pressure water or foam and other flame retardant liquids. These hoses are equipped with polyester jackets paired with EPDM, SR or PVC inner linings, ensuring robust resistance to oil, abrasion, wear, and puncture. Engineered to endure both high and low temperatures, they function reliably even in challenging marine environments. Both ends of the fire hose have metal joints, which can be connected to another hose to extend the distance or to the nozzle to increase the liquid injection pressure.

TYPE	Outer layer	Material of liner	Working pressure	Inside diameter	Length	UNIT
Inner Rubber Fire Hose	Polyester filament	EPDM	15BAR	40/50/65MM	15/20/25/30M	RLS
Inner Rubber Fire Hose	Polyester filament	SR	10BAR/13BAR	40/50/65MM	15/20/25/30M	RLS
Inner Rubber Fire Hose	Polyester filament	PVC	9BAR/10BAR	40/50/65MM	15/20/25/30M	RLS


CODE	DESCRIPTION	UNIT
330701	PVC INNER RUBBER FIRE HOSE 9KG 40MMX15MTR	RLS
330702	PVC INNER RUBBER FIRE HOSE 9KG 50MMX15MTR	RLS
330703	PVC INNER RUBBER FIRE HOSE 9KG 65MMX15MTR	RLS
330704	PVC INNER RUBBER FIRE HOSE 9KG 40MMX20MTR	RLS
330705	PVC INNER RUBBER FIRE HOSE 9KG 50MMX20MTR	RLS
330706	PVC INNER RUBBER FIRE HOSE 9KG 65MMX20MTR	RLS
330710	PVC INNER RUBBER FIRE HOSE 9KG 40MMX30MTR	RLS
330711	PVC INNER RUBBER FIRE HOSE 9KG 50MMX30MTR	RLS
330712	PVC INNER RUBBER FIRE HOSE 9KG 65MMX30MTR	RLS
