Portable Binding Machine For Fire Hose

Portable Binding Machine For Fire Hose

Portable Fire Hose Binding Equipment

Product Overview

Suitable for binding firefighting hose on coupling shanks using copper copper wire or Stainless steel wire.  Applicable fire hose between 25mm to 130mm to new hose coupling.

Due to their design and features, the devices may be used exclusively

• For the binding of delivery hoses of sizes φ25 mm to φ130 mm to the corresponding couplings, using binding wire

The binding of a new coupling to a hose becomes necessary if.

• The binding has become loose.

• A coupling has torn due to water pressure.

• The hose is damaged at the binding or in its immediate vicinity.

Only the devices described below may be used for binding a coupling.

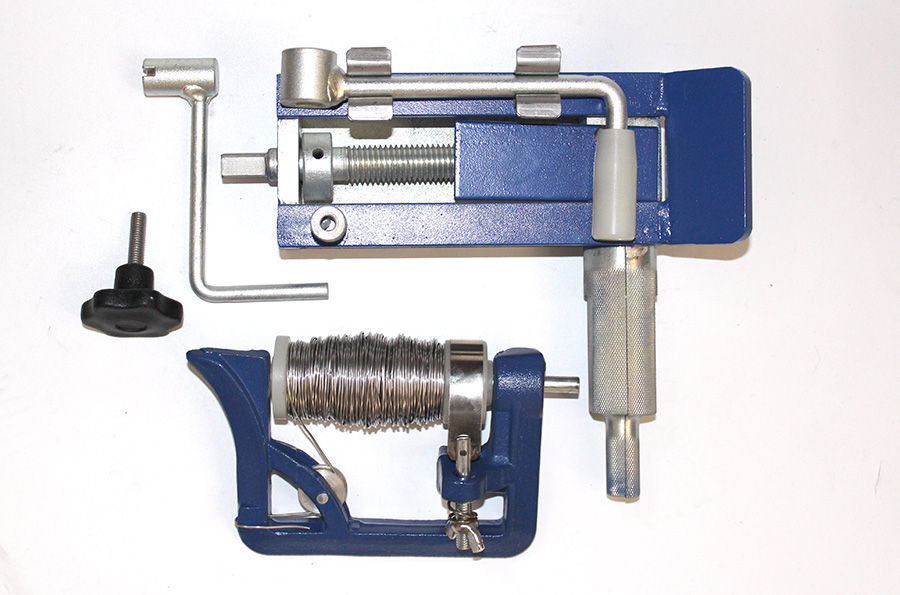

Fire hose binding machines accommodates the coupling and the hose, and secures the components during the binding process. The hand crank allows to adjust the coupling device perfectly to the intended coupling size.

In addition, the coupling device is equipped with a holder for the binding wire. The coupling device can be clamped in any normal workshop vice. Consists of a cast frame that serves both as a handle and as a holder for a coil of binding wire.

The coil is held by a band brake that can be adjusted with a wing screw. A hand crank is supplied for winding the binding wire.
